INTRODUCTION:

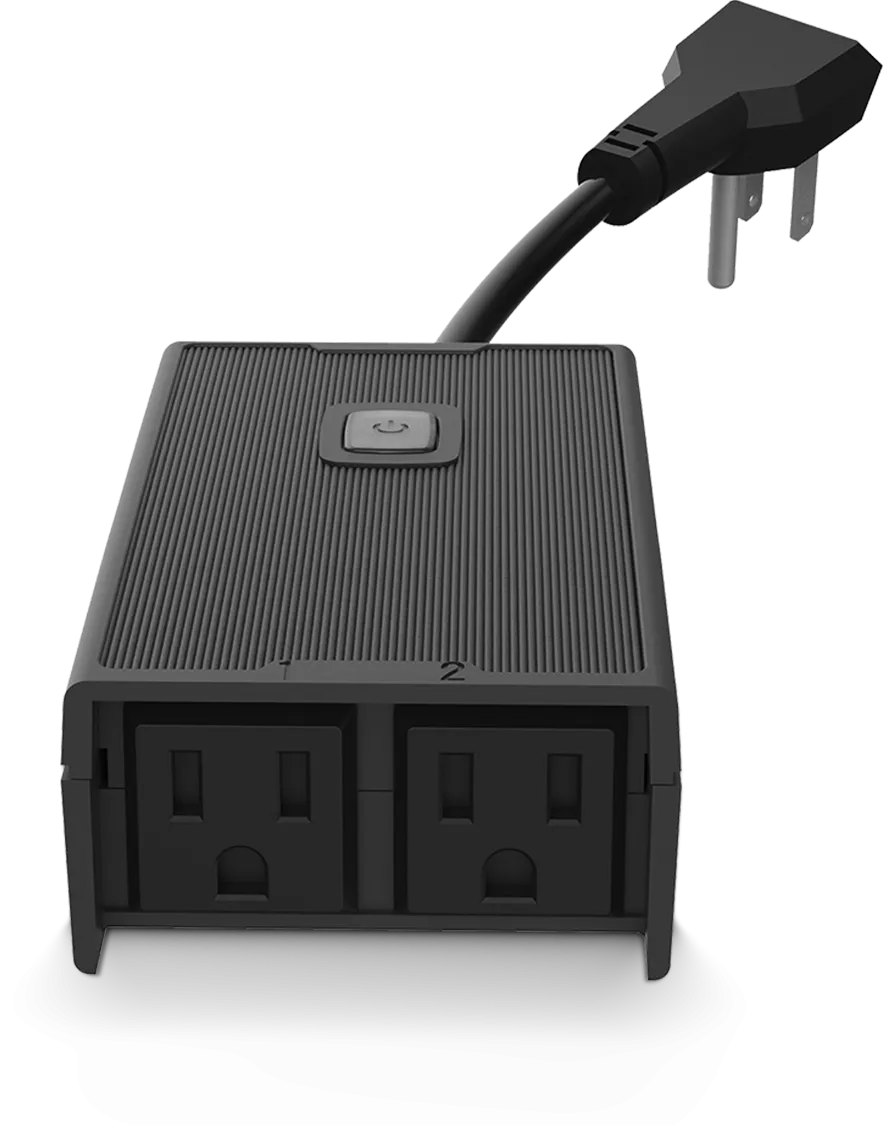

• Two independently-controlled smart 120V outlets in an outdoor rated, water-resistant housing

FEATURES:

• 15 amp outputs, for power-hungry equipment
• Convenient on/off button for manual control

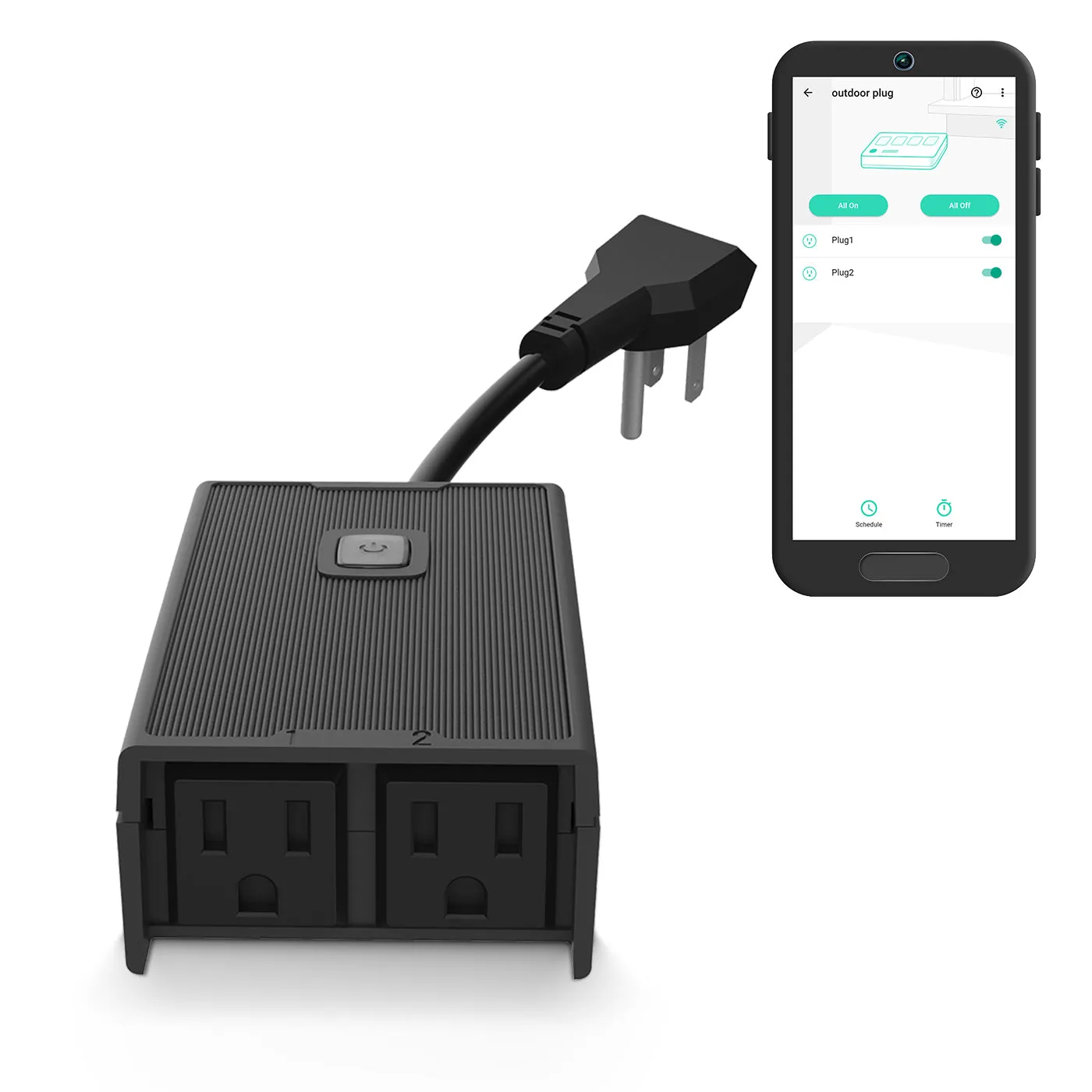

• Remote app control and status
• YoLink Control allows for outlets to be controlled directly by other YoLink devices, without an internet connection
• Alexa and Google voice assistant and IFTTT integration
• YoLink’s industry-leading long range communication

BENEFITS:

• Bring the convenience of your YoLink home automation system outdoors!
• Remotely-control devices from the YoLink app from anywhere at any time
• Potentially lower your power bills by turning off energy-draining appliances, equipment and devices when not in use
• Use the YoLink app to control devices based on your time-of-day and day-of-week schedule
• Use the YoLink app to create custom scenes and automation, such as controlling connected devices when motion is detected (Motion Sensor sold separately)
• Extremely easy and fast installation using the YoLink app with Scan & Play

APPLICATIONS:

• Outdoor/landscape lighting control
• Holiday lighting & decorations
• Pond and fountain pump control
• Fan control
• Use the YoLink smartphone app to remotely power on/off connected 120V-powered devices

SUGGESTED PRODUCTS:

•  is required. Starting your first YoLink system? Consider one of our
• Pair your Outdoor Plug with the , to activate connected lights when motion is detected
• Pair your Outdoor Plug with the  for hard-to-reach control, adding convenience to your life

REQUIREMENTS:

• YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
• Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
• Tools Required: None
• Installation Difficulty Level: Super Easy
• For your safety, connect only to a GFCI outlet or as required by local codes

TECHNICAL SPECS:

• Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
• ETL-Listed
• Color: Black
• One Power (On/Off) control button
• Multi-color Status Indicator LED
• AC Input Power: 100 – 120VAC, 60Hz
• AC Output Rating: 100 – 120VAC, 15 Amps Max. (Resistive)
• IP Waterproof Rating: IP44
• Environmental:
• Operating Temperature Range: 14°F – 122°F (10°C – 50°C)
• Operating Humidity Range: 20 – 90% non-condensing

PACKAGE CONTENTS:

• (1) YoLink Outdoor Plug
• (1) Quick Start Guide

PLEASE NOTE:

• The Outdoor Plug is packaged with a quick start guide only. Please download the current
• Not intended for submersion in water

ADDITIONAL RESOURCES:

• YoLink Website:
• YoLink Facebook page:
• YoLink YouTube channel (under construction):
• Questions? Need system design assistance? Contact a System Architect via email:
